Cr15Mo3 320 / 580 Grinding Ball Steel Mill Liners Abrasion Resistance

Wuxi Orient Anti-wear Engineering Co.,Ltd.
Contact Now

Cr15Mo3 320 / 580 Grinding Ball Steel Mill Liners Abrasion Resistance

Brand Name : Chen's Liner

Model Number : DF114

Certification : ISO 9001:2008

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3 Ton/Tons

Price : Discuss in email

Payment Terms : L/C,T/T

Supply Ability : 4500 Ton/Tons per Month

Delivery Time : It depends on the quantity to be ordered.

Packaging Details : Packed by strong steel pallets; The load of each pallet is less than 2500kg;

Port : Shanghai

Application : Coal Mill

Material : High Cr White Iron

Dimensions : As per drawings

Impact Value : More than AK5J

Product Name : Mill Liners

Hardness : More than HRC50

Inspection : UT&MT

OEM : Yes

Contact Now

Cement Mill Wear Resistance Cast Iron Liner Plates

Specification

  • Material:High Cr Cast Iron
  • Hardness:≥HRC52
  • Impact Value:More than AK5J
  • Application:Mining Industry
  • MOQ:2tons



High Cr white iron material possess a combination of superior abrasion resistance and a reasonable

degree of toughness. The high Cr castings have longer service life than the other material,such as

high Mn steel and Cr-Mo alloy steel.And now it is widely used in the working condition of high wear and  low impact,such as dry grinding process,coal mills,cement mills due to its excellent performance.

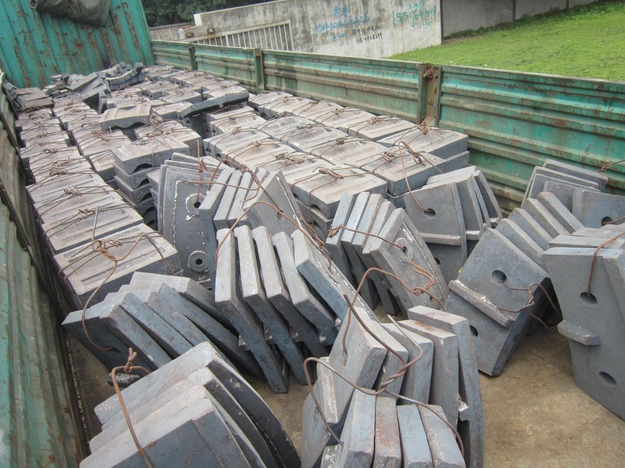

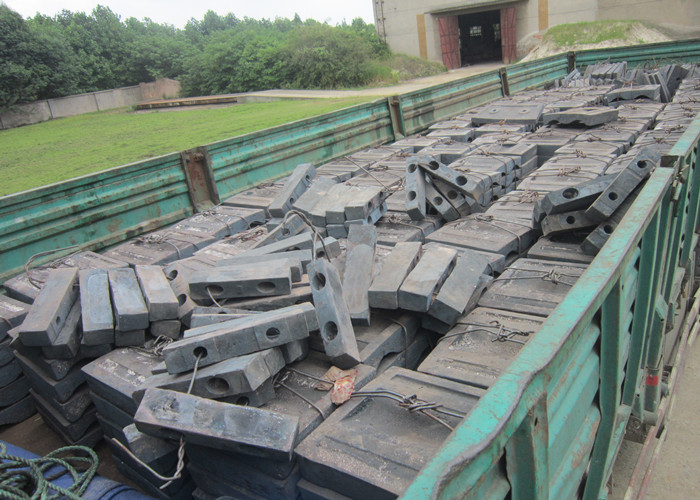

Product Photo

  Cr15Mo3 320 / 580 Grinding Ball Steel Mill Liners Abrasion Resistance

  Cr15Mo3 320 / 580 Grinding Ball Steel Mill Liners Abrasion Resistance

Technical Parameters

Item High Cr White Iron High Cr Alloy Steel High Mn Steel Ni-hard Cast Iron
C 2.4-3.2 1.1-2.2 0.9-1.3 2.4-3.6
Si 0.6-1.2 0.6-1.2 ≤0.8 ≤0.8
Mn 0.5-1.0 0.5-1.0 11.0-18.0 ≤2.0
Cr 12.0-30.0 11.0-30.0 1.5-2.5 1.5-10
S ≤0.04 ≤0.04 ≤0.04 ≤0.15
P ≤0.06 ≤0.06 ≤0.06 ≤0.15
Mo 0.1-3.0 0.1-3.0 ≤1.0 ≤0.1
Cu 0.1-1.0 0.1-1.0 - -
Ni 0-0.3 0-0.3 - 3.3-10
Re - - - -
Equivalent
Specification
GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A 25%Cr
ASTM A532 Class Ⅱ Type B 15%Cr-Mo
BS 4844 3E
DIN1695
NFA32401
GB/T5680-1998
DL/T 681-1999
JIS G 5153-1999
ASTM A128
DIN GX120Mn12
AFNORZ120Mn12
GB/T8263-1999
AS2027/Ni-Cr1-550
AS2027/Ni-Cr2-500
AS2027/Ni-Cr4-500
AS2027/Ni-Cr4-600
AS2027/Ni-Cr4-630
ASTM A532 1-A,B,C,D
ASTM A532 2-A,B,C,D,E
ASTM A532 3-A
Material Type Martensite Matrix Austenitic Mn Steel -
Hardness HRC≥56 HB≤300 HRC≥56
Impact Value AK≥4J AK≥80J -



Production Facilities

                             1T,1.5T,3T,5T,12T,15T

       Induction Electrical Furnace                          Heat Treatment Electrical Furnace

      Cr15Mo3 320 / 580 Grinding Ball Steel Mill Liners Abrasion Resistance         Cr15Mo3 320 / 580 Grinding Ball Steel Mill Liners Abrasion Resistance

Inspection Facilities

Spectrometer                                                   Portable Hardness Tester

       Cr15Mo3 320 / 580 Grinding Ball Steel Mill Liners Abrasion Resistance         Cr15Mo3 320 / 580 Grinding Ball Steel Mill Liners Abrasion Resistance



                                             UT Test                                       Electronic Metallographic Microscope

                 Cr15Mo3 320 / 580 Grinding Ball Steel Mill Liners Abrasion Resistance          Cr15Mo3 320 / 580 Grinding Ball Steel Mill Liners Abrasion Resistance



Honor

Cr15Mo3 320 / 580 Grinding Ball Steel Mill Liners Abrasion Resistance   Cr15Mo3 320 / 580 Grinding Ball Steel Mill Liners Abrasion Resistance    Cr15Mo3 320 / 580 Grinding Ball Steel Mill Liners Abrasion Resistance







Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

 longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5. We can provide OEM/ODM for our clients.
