Finished Travelling Wheels Alloy Steel Castings With HRC40 Hardness

Name: Finished Travelling Wheels Alloy Steel Castings With HRC40 Hardness
Brand: Chen's Liner
Price: 1 USD

Buy cheap Finished Travelling Wheels Alloy Steel Castings With HRC40 Hardness product

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Chen's Liner

Model Number : DF712

MOQ : 2 Ton/Tons

Price : Discuss in email

Packaging Details : Packed by steel pallets.

Delivery Time : It depends on the quantity to be ordered.

Payment Terms : L/C,T/T

Supply Ability : 4500 Ton/Tons per Year

Port : Shanghai

Certification : ISO 9001:2008

Material : Alloy Steel

Hardness : More than HRC40

Impact Value : More than AK78J

Product Name : Travelling Wheels

Model No. : DF712

Yield strength : ≥930

Contact Now

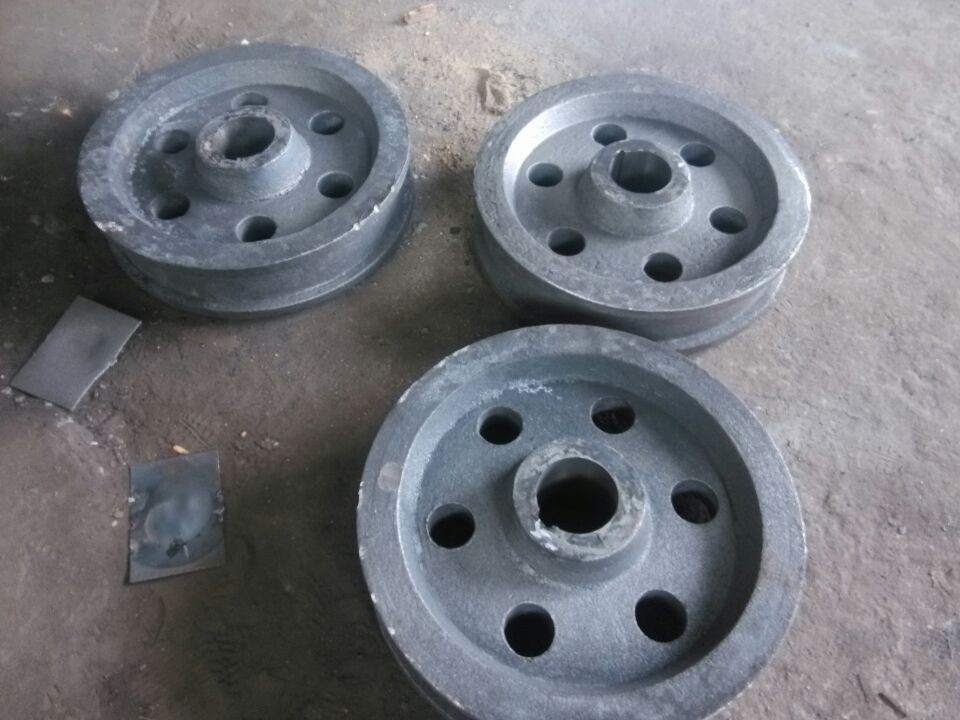

Finished Travelling Wheels Alloy Steel Castings With HRC40 Hardness

1. Yield strength: σs (MPa):≥930(95);
2. Strength of extension σb (MPa):≥1080(110);
3. Percentage reduction of area ψ (%):≥45;
4. Elongation: δ5 (%):≥12;
5. Impact Value: more than AK78J.
5.The bolt holes are clean, smooth.

The general advantages in ball mills are as follows:

Output Increased	5~20%
Power Consumption Reduced	5~20%
Maintenance Decreased	Above 98%
The liners are easily installed and existing mills need no modification.

The additional advantages in cement mills are as follows:

No leakage of slurry

No repairs during service periods

Better reliability and stability

Production Improvement

Noise reduction

Technical Parameters

Item	Cr-Mo Alloy Steel I	Cr-Mo Alloy Steel II	Cr-Mo Alloy Steel III
C	0.30-0.50	0.65-0.90	0.40-0.90
Si	0.50-1.20	≤0.75	0.70-1.20
Mn	0.40-1.20	0.50-1.20	0.60-1.00
Cr	1.70-2.50	1.50-2.50	4.00-7.00
S	≤0.04	≤0.06	≤0.04
P	≤0.04	≤0.06	≤0.06
Mo	≤0.5	≤0.5	≤0.5
Cu	0.10-0.60	≤0.25	0.20-0.40
Ni	≤0.50	≤0.30	≤0.30
Re	≤0.02	≤0.02	≤0.02
Equivalent Specifications	DL/T 681-1999 GB/T26651-2011	AS 2074 L2B Mod	DL/T681-1999
Material Type	Martensite Steel	Martensite or Pearlitic Cr Mo Steel	Martensite Steel
Hardness	HRc≥48	HB470& HB321-370	HRc≥50
Impact Value	AK≥40J	-	AK≥10J

Item	High Cr white iron	High Cr Alloy Steel	High Manganese Steel	Ni-Hard cast iron
C	2.40-3.20	1.1-2.2	0.90-1.30	2.40-3.60
Si	0.60-1.20	0.60-1.20	≤0.08	≤0.08
Mn	0.50-1.00	0.50-1.00	11.00-18.00	≤2.0
Cr	12.00-30.00	11.00-30.00	1.50-2.20	1.5-10.0
S	≤0.04	≤0.04	≤0.04	≤0.15
P	≤0.06	≤0.06	≤0.06	≤0.15
Mo	0.10-0.30	0.10-0.30	≤1.0	≤0.10
Cu	0.10-1.00	0.10-1.00	-	-
Ni	0-0.30	0-0.30	-	3.3-10.0
Re	-	-	-	-
Equivalent Specifications	GB/T 8263-1999 AS 2027 Cr27 AS 2027 CrMo15/3 AS 2027 CrMo20/2/1 ASTM A532 Class III type A25%Cr ASTM A532 Class II type B15%Cr-Mo BS 4844 3E DIN1695 NFA32401		BG/T 5680-1998 DL/T 681-1999 JIS G 5153-1999 ASTM A 128 DIN GX120Mn12 AFNOR:Z120Mn12	GB/T 8263-1999 AS 2027/Ni-Cr1-550 AS 2027/Ni-Cr2-500 AS 2027/Ni-Cr4-500 AS 2027/Ni-Cr4-600 AS 2027/Ni-Cr4-630 ASTM A 532 1-A,B,C,D ASTM A 532 2-A,B,C,D,E ASTM A 532 3-A
Material Type	Martensite matrix		Austenitic Mn Steel	-
Hardness	HRc≥56		HB≤300	HRc≥56
Impact Value	AK≥4J		AK≥80J	-

Our foundry has complete melting,heat treatment and test equipments,such as mid
frequency induction electrical furnaces,quenching and tempering furnaces,blast shot,
spectrometer,Rockwell and Brinell Hardness tester,impactor.

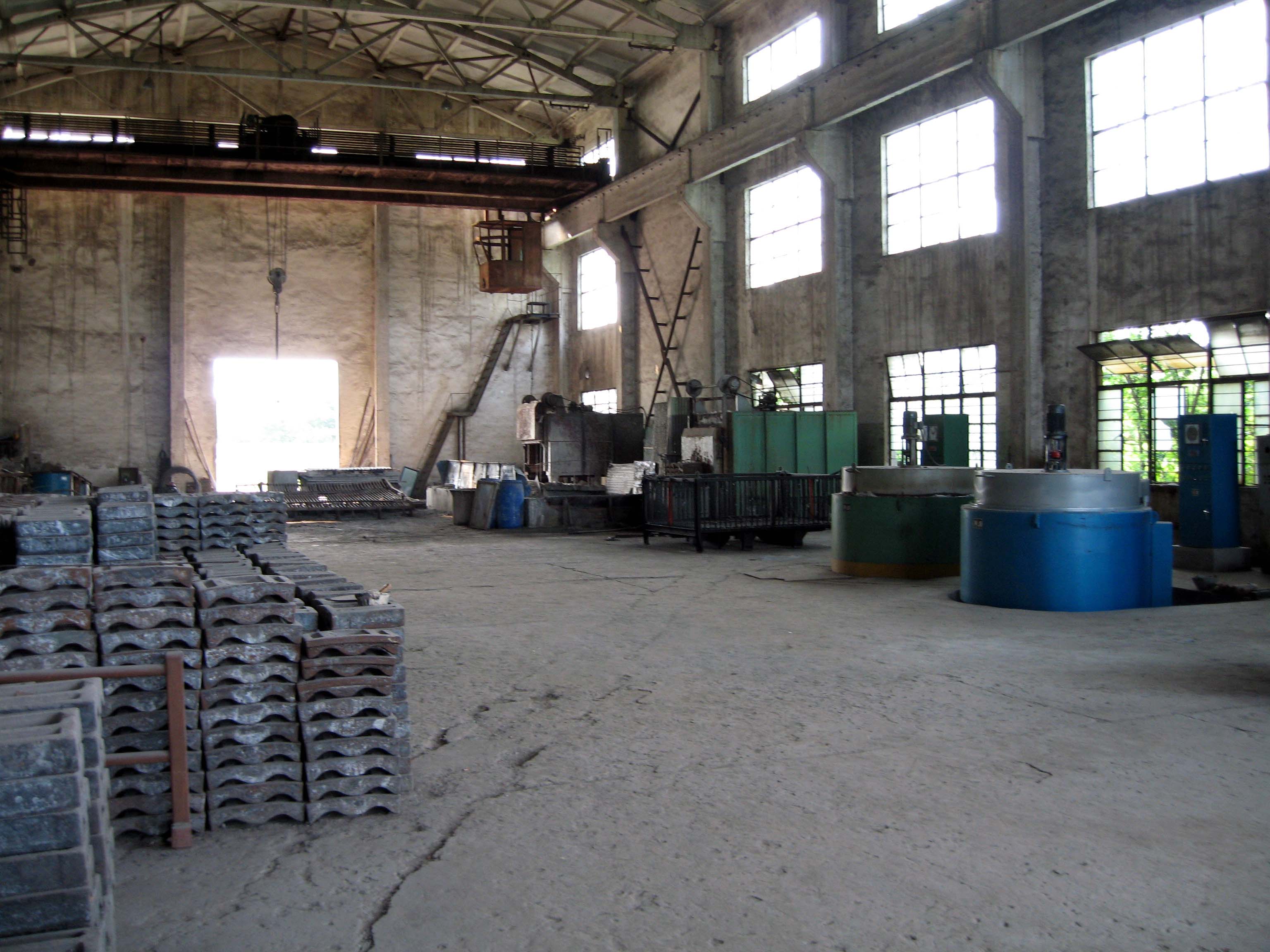

Foundry Photo
Finished Travelling Wheels Alloy Steel Castings With HRC40 Hardness

UTtesterand metallographic microscope.We achieved the certificate of quality management
system ISO 9001:2000.We have been exporting castings to oversea markets,such as Brazil, Australia and South Africa.
