High Cr White Iron wear resistant and higher hardness Castings blow bars shipment to American for ball mill

Name: High Cr White Iron wear resistant and higher hardness Castings blow bars shipment to American for ball mill
Brand: Chen's Liner
Price: 2500 USD

Buy cheap High Cr White Iron wear resistant and higher hardness Castings blow bars shipment to American for ball mill product

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Chen's Liner

Model Number : DF657

MOQ : 2 Ton/Tons

Price : USD 2500~3200 / Ton

Packaging Details : Packed by strong steel pallets; The load of each pallet is less than 2500kg; The castings will be lo

Delivery Time : It depends on the quantity to be ordered.

Payment Terms : L/C,T/T

Supply Ability : 4500 Ton/Tons per Year

Port : Shanghai

Certification : ISO 9001:2008

Application : Mining Industry

Material : KmTBCr18

Dimension : According to detailed drawing

Hardness : More than HRC58

MOQ : 2 Tons

Package : Steel Pallet

Dimensions： : As per drawings

Contact Now

High Cr White Iron wear resistant and higher hardness Castings blow bars shipment to American for ball mill

Summarization

High Cr white iron material possess a combination of superior abrasion resistance and a reasonable

degree of toughness. The high Cr castings have longer service life than the other material,such as

high Mn steel and Cr-Mo alloy steel.And now it is widely used in the working condition of high wear and low impact,such as dry grinding process,coal mills,cement mills due to its excellent performance.

Quick Description

Material:High Cr Cast Iron

Hardness:More than HRC58

Impact Value:≥AK10J

Dimension:As per drawing

Heat Treatment Process:Quenching and Tempering

Casting Process:Sand Casting

Application:Coal Mill,Cement Mill,Mining Industry etc.

Package:Steel Pallets

Delivery Time:Depends on the quantity to be ordered.

MOQ:2Tons

Technical Parameters

Item	High Cr White Iron	High Cr Alloy Steel	High Mn Steel	Ni-hard Cast Iron
C	2.4-3.2	1.1-2.2	0.9-1.3	2.4-3.6
Si	0.6-1.2	0.6-1.2	≤0.8	≤0.8
Mn	0.5-1.0	0.5-1.0	11.0-18.0	≤2.0
Cr	12.0-30.0	11.0-30.0	1.5-2.5	1.5-10
S	≤0.04	≤0.04	≤0.04	≤0.15
P	≤0.06	≤0.06	≤0.06	≤0.15
Mo	0.1-3.0	0.1-3.0	≤1.0	≤0.1
Cu	0.1-1.0	0.1-1.0	-	-
Ni	0-0.3	0-0.3	-	3.3-10
Re	-	-	-	-
Equivalent Specification	GB/T8263-1999 AS2027 Cr27 AS2027 CrMo 15/3 AS2027 CrMo 20/2/1 ASTM A532 Class Ⅲ Type A 25%Cr ASTM A532 Class Ⅱ Type B 15%Cr-Mo BS 4844 3E DIN1695 NFA32401		GB/T5680-1998 DL/T 681-1999 JIS G 5153-1999 ASTM A128 DIN GX120Mn12 AFNORZ120Mn12	GB/T8263-1999 AS2027/Ni-Cr1-550 AS2027/Ni-Cr2-500 AS2027/Ni-Cr4-500 AS2027/Ni-Cr4-600 AS2027/Ni-Cr4-630 ASTM A532 1-A,B,C,D ASTM A532 2-A,B,C,D,E ASTM A532 3-A
Material Type	Martensite Matrix		Austenitic Mn Steel	-
Hardness	HRC≥56		HB≤300	HRC≥56
Impact Value	AK≥4J		AK≥80J	-

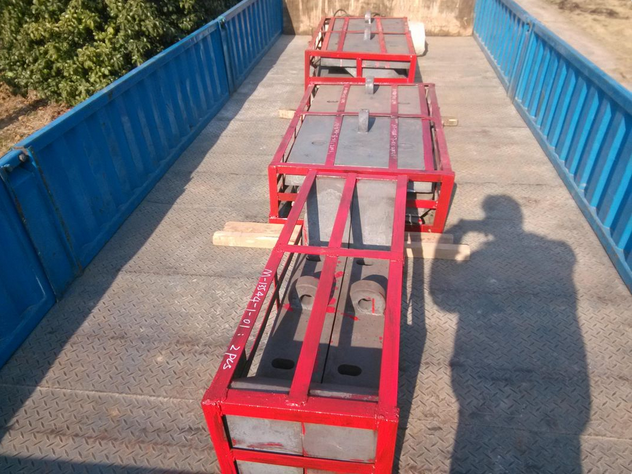

Product Photo

High Cr White Iron wear resistant and higher hardness Castings blow bars shipment to American for ball mill

Company Introduction

High Cr White Iron wear resistant and higher hardness Castings blow bars shipment to American for ball mill

Inspection Facilities

High Cr White Iron wear resistant and higher hardness Castings blow bars shipment to American for ball mill
