High Chrome Cr18 White Iron Castings Parts , Cast Iron Chute Lining

Product Categories
Wuxi Orient Anti-wear Engineering Co.,Ltd.
Contact Now

High Chrome Cr18 White Iron Castings Parts , Cast Iron Chute Lining

  • 1
  • 2

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Chen's Liner

Model Number : DF659

MOQ : 2 Ton/Tons

Price : USD 2500~3200 / Ton

Packaging Details : Packed by strong steel pallets; The load of each pallet is less than 2500kg; The castings will be lo

Delivery Time : It depends on the quantity to be ordered.

Payment Terms : L/C,T/T

Supply Ability : 4500 Ton/Tons per Year

Port : Shanghai

Certification : ISO 9001:2008

Material : High Cr Cast Iron

Dimension : 320/580

Hardness : More than HRC58

Application : Mining Industry

MOQ : 2 Tons

Package : Steel Pallet

Dimensions： : As per drawings

Inspection : UT&MT

Contact Now

High Chrome Cr18 White Iron Castings Parts , Cast Iron Chute Lining



Summarization

High Cr white iron material possess a combination of superior abrasion resistance and a reasonable

degree of toughness. The high Cr castings have longer service life than the other material,such as

high Mn steel and Cr-Mo alloy steel.And now it is widely used in the working condition of high wear and low impact,such as dry grinding process,coal mills,cement mills due to its excellent performance.



Specification

Model Number DF659
Material High Cr Cast Iron
Hardness More than HRC58
Dimension As per drawing
Casting Process Sand Casting
Heat Treatment Process Quenching and Tempering
Impact Value ≥AK10J
Inspection

Dimensional Inspection

Chemical Composition Inspection

Hardness Inspection

UT Test
Application Coal Mill,Cement Mill,Mining Industry etc.
MOQ 2Tons
Delivery Time Depends on the quantity to be ordered.
Port Shanghai
Package Steel Pallets
Payment Terms T/T,L/C

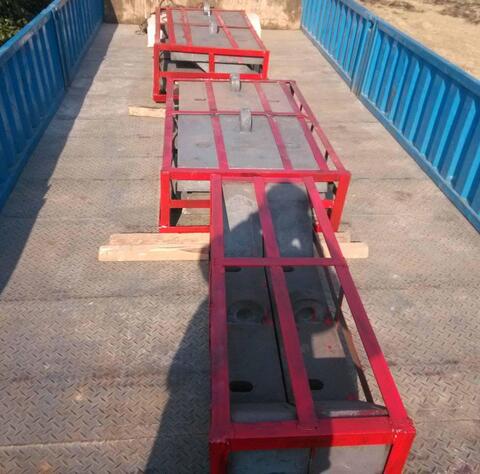

Product Photo

High Chrome Cr18 White Iron Castings Parts , Cast Iron Chute Lining

Technical Parameters

Item High Cr White Iron High Cr Alloy Steel High Mn Steel Ni-hard Cast Iron
C 2.4-3.2 1.1-2.2 0.9-1.3 2.4-3.6
Si 0.6-1.2 0.6-1.2 ≤0.8 ≤0.8
Mn 0.5-1.0 0.5-1.0 11.0-18.0 ≤2.0
Cr 12.0-30.0 11.0-30.0 1.5-2.5 1.5-10
S ≤0.04 ≤0.04 ≤0.04 ≤0.15
P ≤0.06 ≤0.06 ≤0.06 ≤0.15
Mo 0.1-3.0 0.1-3.0 ≤1.0 ≤0.1
Cu 0.1-1.0 0.1-1.0 - -
Ni 0-0.3 0-0.3 - 3.3-10
Re - - - -
Equivalent
Specification		 GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A 25%Cr
ASTM A532 Class Ⅱ Type B 15%Cr-Mo
BS 4844 3E
DIN1695
NFA32401		 GB/T5680-1998
DL/T 681-1999
JIS G 5153-1999
ASTM A128
DIN GX120Mn12
AFNORZ120Mn12		 GB/T8263-1999
AS2027/Ni-Cr1-550
AS2027/Ni-Cr2-500
AS2027/Ni-Cr4-500
AS2027/Ni-Cr4-600
AS2027/Ni-Cr4-630
ASTM A532 1-A,B,C,D
ASTM A532 2-A,B,C,D,E
ASTM A532 3-A
Material Type Martensite Matrix Austenitic Mn Steel -
Hardness HRC≥56 HB≤300 HRC≥56
Impact Value AK≥4J AK≥80J -



Company Introduction

High Chrome Cr18 White Iron Castings Parts , Cast Iron Chute Lining

Inspection Facilities

High Chrome Cr18 White Iron Castings Parts , Cast Iron Chute Lining



High Chrome Cr18 White Iron Castings Parts , Cast Iron Chute Lining
