Home > Wear-resistant Castings >

Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots

Wuxi Orient Anti-wear Engineering Co.,Ltd.
Contact Now

Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots

  • 1
  • 2

Place of Origin : Jiangsu,China (Mainland)

Brand Name : Chen's Liner

Model Number : DF089

MOQ : 8 Ton/Tons

Price : Discuss in email

Packaging Details : 5 pieces wrapped by round steel strip.

Delivery Time : It depends on quantity ordered.

Payment Terms : L/C,T/T

Supply Ability : 4500 Ton/Tons per Year

Port : Shanghai

Certification : ISO 9001

Application : Mining Industry

Material : Steel

Dimensions : As per drawings

Hardness : HB325-375

Product Name : Wear-resistant Castings,Wear Resistant Casting

Contact Now

Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots



Specification

1. Material:Cr-Mo Alloy Steel

2. Hardness:HB325-375

3. Impact Value:More than AK10J

4. Application:Mining Industry

5. MOQ:8tons

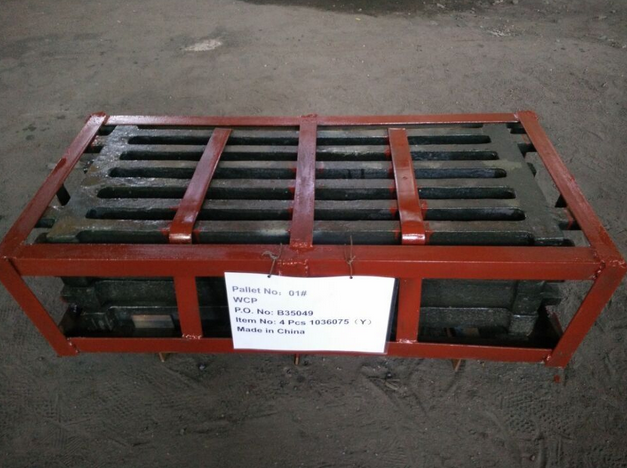

Product Photo

Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots  Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots



Technical Parameters

Item Cr-Mo Alloy Steel Ⅰ Cr-Mo Alloy Steel Ⅱ Cr-Mo Alloy Steel Ⅲ
C 0.3-0.5 0.65-0.90 0.4-0.9
Si 0.15-1.20 ≤0.75 0.7-1.2
Mn 0.4-1.2 0.5-1.2 0.6-1.0
Cr 1.7-2.5 1.5-2.5 4.0-7.0
S ≤0.04 ≤0.06 ≤0.04
P ≤0.04 ≤0.06 ≤0.06
Mo ≤0.5 ≤0.5 ≤0.15
Cu 0.1-0.6 ≤0.25 0.2-0.4
Ni ≤0.5 ≤0.3 0-0.3
Re ≤0.02 ≤0.02 ≤0.02
Equivalent
Specification
DL/T 681-1999
GB/T26651-2011
AS2074L2B Mod DL/T 681-1999
Material Type Martensite Steel Martensite or Pearlitic Cr Mo Steel Martensite Steel
Hardness HRC≥48 HB470&HB321-370 HRC≥50
Impact Value AK≥40J - AK≥10J



Production Facilities

                             1T,1.5T,3T,5T,12T,15T

       Induction Electrical Furnace                          Heat Treatment Electrical Furnace

      Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots         Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots

Inspection Facilities

Spectrometer                                                   Portable Hardness Tester

       Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots         Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots



                                             UT Test                                       Electronic Metallographic Microscope

                 Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots          Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots



Process



Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots















































































Honor

Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots   Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots    Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots



About Us

We are a Chinese specialized manufacturer of wear, heat and corrosion-resistant castings.

Our main products are ball mill liners, grinding media and wear parts for crushers.



The area for our foundry is about 30,000 square meters. The capacity of our company is 30,000MT/year

and the single piece is from 15kg to 20tons. The capacitiesof Mid-frequency induction electric furnaces

are 15tons,12tons, 5tons,2tons,1.5tons and 1.2tons. And we have 10 sets of heat-treatment electrical  furnaces with capacity of 30 tons, 10 tons,3 tons.

Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots  Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots   Alloy Steel Wear-resistant Castings Cr-Mo Alloy Steel Grizzly Screen Slots



Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

 longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
