High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet

Wuxi Orient Anti-wear Engineering Co.,Ltd.
Contact Now

High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet

Place of Origin : China(Mainland)

Brand Name : Chen's Liner

Model Number : DF639

MOQ : 2Tons

Price : FOBShanghai USD2500-3200/ton

Packaging Details : Packed by strong steel pallets; The load of each pallet is less than 2500kg;

Delivery Time : It depends on the quantity to be ordered.

Payment Terms : T/T,L/C

Supply Ability : 4500Tons/year

Material : Ni-hard Cast Iron

Dimension : As per drawing

Application : Mining Industry

MOQ : 2tons

Heat Treatment Process : Quenching and Tempering

Inspection : Dimensional Check,Chemical Composition Check,Hardness Check

Contact Now

Hardness More Than HRC58 Wear-Resistant Castings Chute Liners for Cement Mill



Specification

1. Material:Ni-hard Cast Iron

2. Hardness:More than HRC58

3. Feature:AK5-15J

4. Application:Mining Industry

5. MOQ:2tons

6. Dimensions:As per drawings



We specially design the material for cement mill liners ,Which includes boltless liners,shell liners,

grate plates ,end liners etc..The material can not only achieve ideal hardness (more than HRC50)

 but also ideal toughness value (AK30~100J).

The liners are more reliable and safer than normal liners,

it also can save the cost.We can produce cement mill liners as per the drawings of customers.



Technical Parameters

Item

Cr-Mo

Alloy Steel I

Cr-Mo

Alloy Steel II

Cr-Mo

Alloy Steel III

High Cr white iron

High Cr Alloy Steel

High Manganese Steel

Ni-Hard cast iron

C

0.30~0.50

0.65~0.90

0.40~0.90

2.40~3.20

1.1~2.2

0.90~1.30

2.40~3.60

Si

0.50~1.20

≤0.75

0.70~1.20

0.60~1.20

0.60~1.20

≤0.08

≤0.80

Mn

0.40~1.20

0.50~1.20

0.60~1.00

0.50~1.00

0.50~1.00

11.00~18.00

≤2.0

Cr

1.70~2.50

1.50~2.50

4.00~7.00

12.00~30.00

11.00~30.00

1.50~2.50

1.5~10

S

≤0.04

≤0.06

≤0.04

≤0.04

≤0.04

≤0.04

≤0.15

P

≤0.04

≤0.06

≤0.06

≤0.06

≤0.06

≤0.06

≤0.15

Mo

≤0.5

≤0.5

≤0.5

0.10~3.0

0.10~3.0

≤1.0

≤0.10

Cu

0.10~0.60

≤0.25

0.20~0.40

0.10~1.00

0.10~1.00

-

-

Ni

≤0.50

≤0.30

0~0.30

0~0.30

0~0.30

-

3.3~10

Re

≤0.02

≤0.02

≤0.02

-

-

-

-

Equivalent

Specifications

DL/T 681-1999



GB/T26651-2011

AS 2074 L2B Mod

DL/T 681-1999

GB/T 8263-1999

AS 2027 Cr27

AS 2027 CrMo 15/3

AS 2027 CrMo 20/2/1

ASTM A532 Class III type A 25% Cr

ASTM A532Class II type B 15% Cr-Mo

BS 4844 3E

DIN1695

NFA32401.

GB/T 5680-1998

DL/T 681-1999

JIS G 5153-1999

ASTM A 128

DIN GX120Mn12

AFNOR:Z120Mn12

GB/T 8263-1999

AS 2027/Ni-Cr1-550

AS 2027/Ni-Cr2-500

AS 2027/Ni-Cr4-500

AS 2027/Ni-Cr4-600

AS 2027/Ni-Cr4-630

ASTM A 532 1-A,B,C,D

ASTM A 532 2-A,B,C,D,E

ASTM A 532 3-A

Material Type

Martensite Steel

Martensite or

Pearlitic Cr Mo Steel

Martensite Steel

Martensite matrix

Austenitic Mn Steel

-

Hardness

HRc≥48

HB470 &

HB 321~370

HRc≥50

HRc≥56

HB≤300

HRc≥56

Impact Value

Ak≥40J

-

Ak≥10J

Ak≥4J

Ak≥80J

-

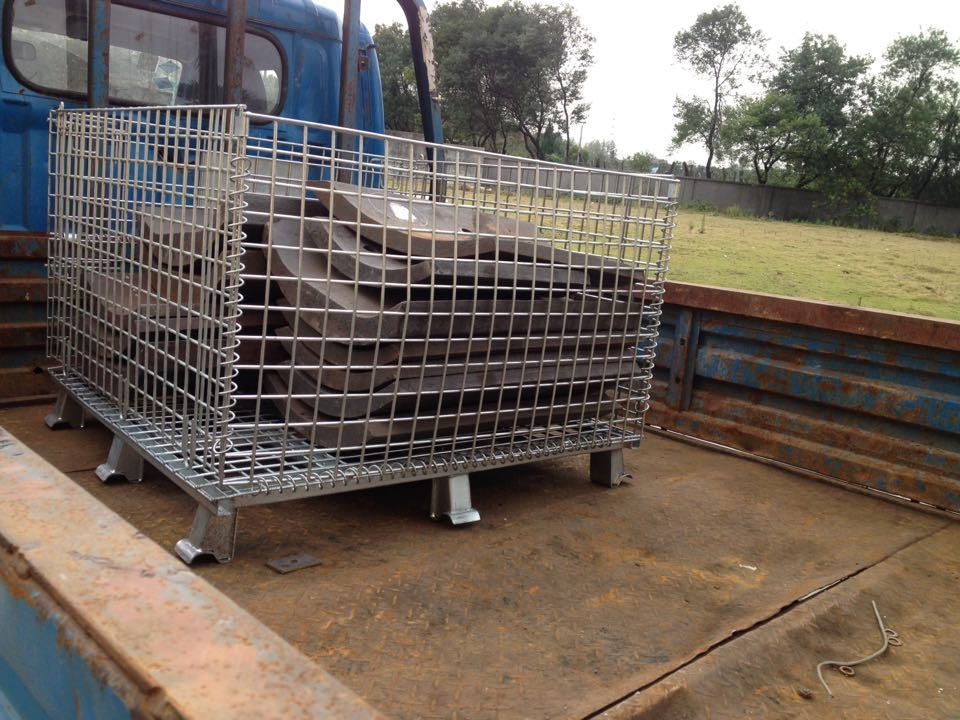

Product Photo

High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet

Production Facilities

                             1T,1.5T,3T,5T,12T,15T

       Induction Electrical Furnace                          Heat Treatment Electrical Furnace

      High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet         High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet

Inspection Facilities

Spectrometer                                                   Portable Hardness Tester

       High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet         High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet



                                             UT Test                                       Electronic Metallographic Microscope

                 High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet          High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet



Process



High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet

Honor

High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet   High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet    High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet



About Us

We are a Chinese specialized manufacturer of wear, heat and corrosion-resistant castings.

Our main products are ball mill liners, grinding media and wear parts for crushers.



The area for our foundry is about 30,000 square meters. The capacity of our company is 30,000MT/year

and the single piece is from 15kg to 20tons. The capacitiesof Mid-frequency induction electric furnaces

are 15tons,12tons, 5tons,2tons,1.5tons and 1.2tons. And we have 10 sets of heat-treatment electrical  furnaces with capacity of 30 tons, 10 tons,3 tons.

High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet  High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet   High hardness HRC58 and high Wear-Resistant Castings for Cement Mill in Steel Pallet



Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

 longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
