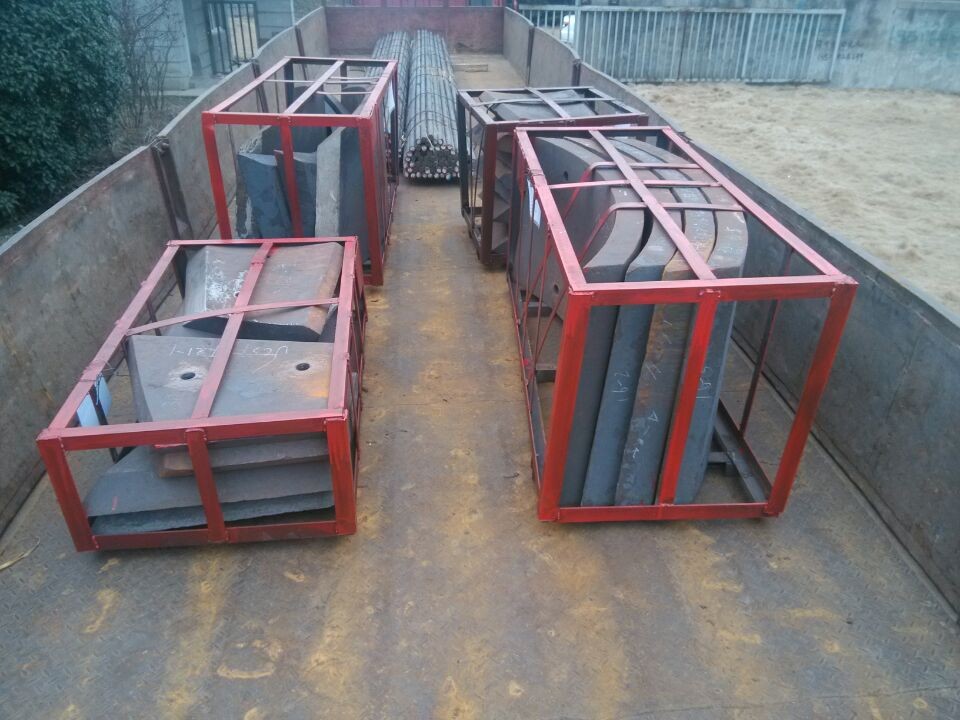

Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings

Wuxi Orient Anti-wear Engineering Co.,Ltd.
Contact Now

Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings

  • 1
  • 2

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Chen's Liner

Model Number : DF591

MOQ : 5 Tons

Price : USD 2000 / Ton

Packaging Details : Plywood box or or customized.

Delivery Time : It depends on quantity to be ordered.

Payment Terms : L/C,T/T

Supply Ability : 5000 Ton/Tons / Year

Port : Shanghai

Certification : ISO 9001:2008

Application : Mine mill

Material : Steel

Dimensions : As per drawings

Product Name : Heat Resistant Castings

OEM : YES

Contact Now

Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings



Specification

1. Material:Cr-Mo Alloy Steel

2. Hardness:HB301-402

3. Impact Value:More than AK10J

4. Application:Mining Industry

5. MOQ:5tons



Product Photo

  Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings  Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings



Technical Parameters

Item Cr-Mo Alloy Steel Ⅰ Cr-Mo Alloy Steel Ⅱ Cr-Mo Alloy Steel Ⅲ
C 0.3-0.5 0.65-0.90 0.4-0.9
Si 0.15-1.20 ≤0.75 0.7-1.2
Mn 0.4-1.2 0.5-1.2 0.6-1.0
Cr 1.7-2.5 1.5-2.5 4.0-7.0
S ≤0.04 ≤0.06 ≤0.04
P ≤0.04 ≤0.06 ≤0.06
Mo ≤0.5 ≤0.5 ≤0.15
Cu 0.1-0.6 ≤0.25 0.2-0.4
Ni ≤0.5 ≤0.3 0-0.3
Re ≤0.02 ≤0.02 ≤0.02
Equivalent
Specification
DL/T 681-1999
GB/T26651-2011
AS2074L2B Mod DL/T 681-1999
Material Type Martensite Steel Martensite or Pearlitic Cr Mo Steel Martensite Steel
Hardness HRC≥48 HB470&HB321-370 HRC≥50
Impact Value AK≥40J - AK≥10J



Production Facilities

                             1T,1.5T,3T,5T,12T,15T

       Induction Electrical Furnace                          Heat Treatment Electrical Furnace

      Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings         Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings

Inspection Facilities

Spectrometer                                                   Portable Hardness Tester

       Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings         Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings



                                             UT Test                                       Electronic Metallographic Microscope

                 Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings          Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings



Process



Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings















































































Honor

Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings   Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings    Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings



About Us

We are a Chinese specialized manufacturer of wear, heat and corrosion-resistant castings.

Our main products are ball mill liners, grinding media and wear parts for crushers.



The area for our foundry is about 30,000 square meters. The capacity of our company is 30,000MT/year

and the single piece is from 15kg to 20tons. The capacitiesof Mid-frequency induction electric furnaces

are 15tons,12tons, 5tons,2tons,1.5tons and 1.2tons. And we have 10 sets of heat-treatment electrical  furnaces with capacity of 30 tons, 10 tons,3 tons.

Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings  Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings   Heat-treatment Packed in Steel Pallets Heat Resistant Aluminum Sand Castings



Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

 longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
