Cr-Mo Alloy Steel Casting of Discharge End Liners for Ball Mill Parts

Name: CrMo Alloy Steel Casting of Discharge End Liners for Ball Mill Parts
Brand: Chen's Liner
Price: 2000 USD

Buy cheap Cr-Mo Alloy Steel Casting of Discharge End Liners for Ball Mill Parts product

Brand Name : Chen's Liner

Model Number : DF0110

Place of Origin : Jiangsu,China(mainland)

MOQ : 2 tons

Price : USD2000-2500/ton

Payment Terms : L/C

Supply Ability : 5000 tons/year

Delivery Time : depends on the quantity to be ordered

Packaging Details : Steel Pallets

Certification : ISO 9001:2008

Material : Alloy Steel

Hardness : Approx HB370

Dimension : According to detail drawing

Application : Ball Mill

surface quality : Good surface quality after shot blaseing

inspecting : UT&MT

Contact Now

Cr-Mo Alloy Steel Casting of Discharge End Liners for Ball Mill Parts

Specification
1.Material:Cr-Mo Alloy Steel
2.Hardness:HRC33-42
3.Impact Value:More than AK50J
4.Application:Mining Industry
5.MOQ:2tons

Our company is a Chinese specialized manufacturer of alloy steel castings.
We can produce alloy steel castings as per the drawings of customers.
Now we have been the regular suppliers of mill liners for Metso;Connect,Australia;
DuoBaoShan Coal Mill.

Product Features
We produce every casting with strict control procedures, must by the quality inspection department quality inspection before delivery, to ensure that each factory the quality of the products.

The use of Discharge End Liners,reduce cost of investment castings and wear,more can reduce due to often shutdown losses as a result of the replacement parts,greatly improve the work efficiency.

We can according to individualized requirements of customers. Products through scientific and strict smelting,casting,heat treatment process,greatly improving the wear resistance.

Technical Parameters

Item	Cr-Mo Alloy Steel Ⅰ	Cr-Mo Alloy Steel Ⅱ	Cr-Mo Alloy Steel Ⅲ
C	0.3-0.5	0.65-0.90	0.4-0.9
Si	0.15-1.20	≤0.75	0.7-1.2
Mn	0.4-1.2	0.5-1.2	0.6-1.0
Cr	1.7-2.5	1.5-2.5	4.0-7.0
S	≤0.04	≤0.06	≤0.04
P	≤0.04	≤0.06	≤0.06
Mo	≤0.5	≤0.5	≤0.15
Cu	0.1-0.6	≤0.25	0.2-0.4
Ni	≤0.5	≤0.3	0-0.3
Re	≤0.02	≤0.02	≤0.02
Equivalent Specification	DL/T 681-1999 GB/T26651-2011	AS2074L2B Mod	DL/T 681-1999
Material Type	Martensite Steel	Martensite or Pearlitic Cr Mo Steel	Martensite Steel
Hardness	HRC≥48	HB470&HB321-370	HRC≥50
Impact Value	AK≥40J	-	AK≥10J

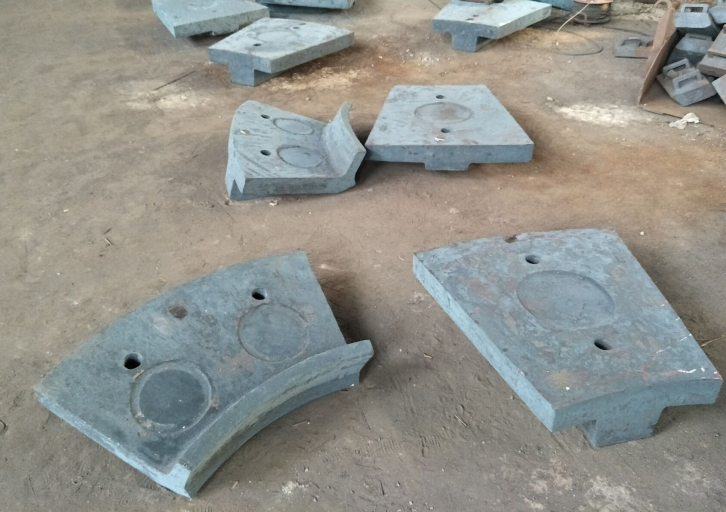

Product Photo
Cr-Mo Alloy Steel Casting of Discharge End Liners for Ball Mill Parts

Production Facilities

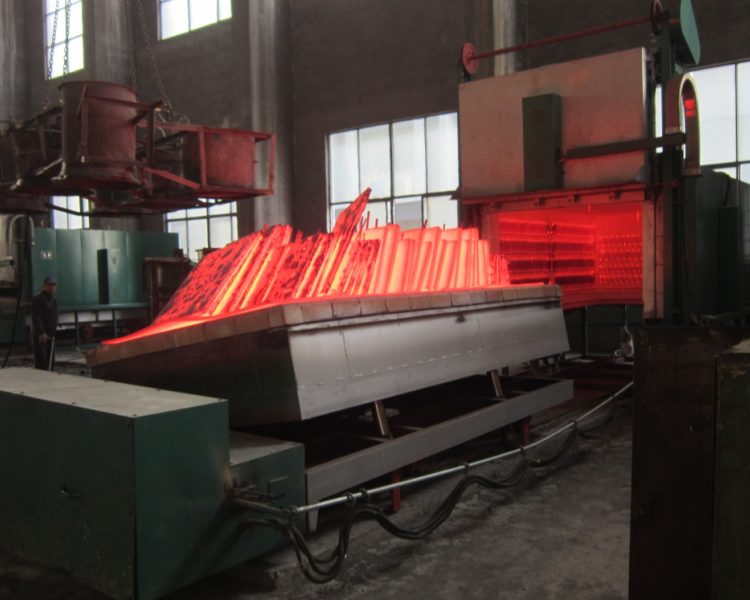

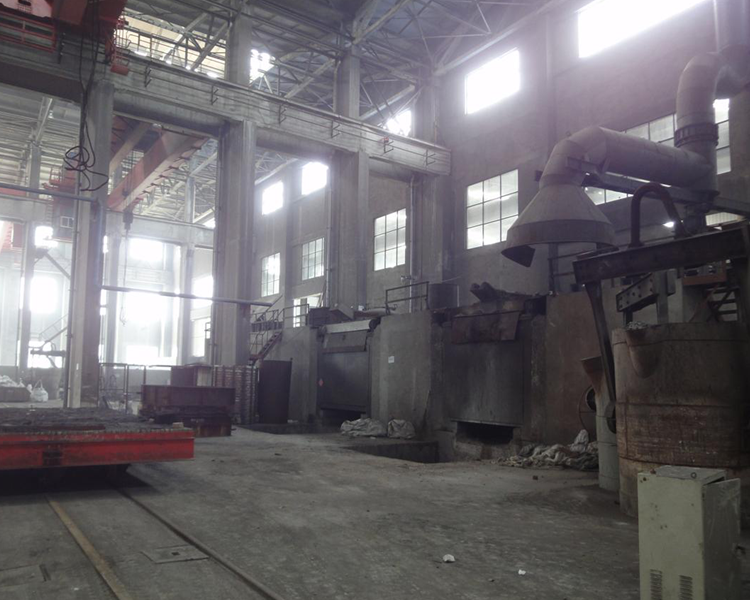

Induction Electrical Furnace Heat Treatment Electrical Furnace

Inspection Facilities

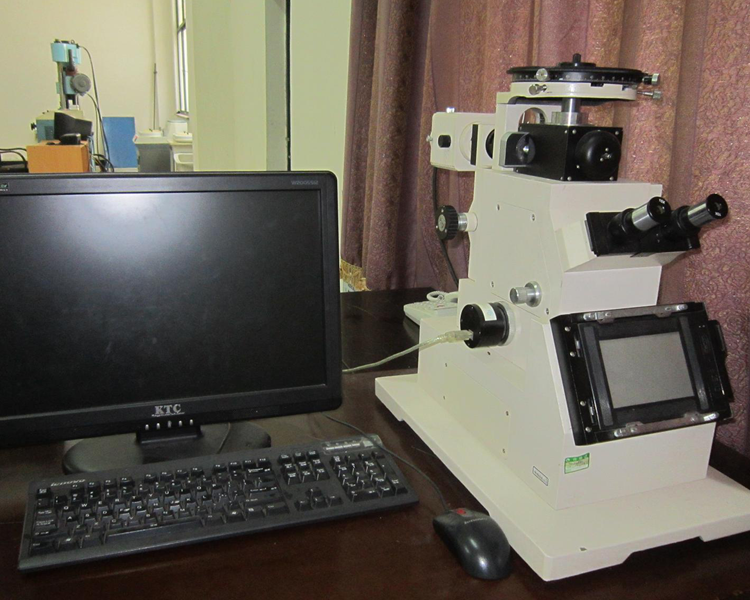

Spectrometer Portable Hardness Tester UT Test Electronic Metallographic Microscope
Cr-Mo Alloy Steel Casting of Discharge End Liners for Ball Mill Parts

Our Services
We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve
longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
