Liner Plates Cr-Mo Alloy Steel Wear Castings Conch Cement Mill Hardness More than HRC50

Wuxi Orient Anti-wear Engineering Co.,Ltd.
Contact Now

Liner Plates Cr-Mo Alloy Steel Wear Castings Conch Cement Mill Hardness More than HRC50

  • 1
  • 2

Place of Origin : Jiangsu,China (Mainland)

Brand Name : Chen's Liner

Model Number : DF475

MOQ : 5 Ton/Tons

Price : USD 2050~2500/Ton

Packaging Details : Packed by strong steel pallets; The load of each pallet is less than 2500kg

Delivery Time : It depends on the quantity to be ordered.

Payment Terms : L/C,T/T

Supply Ability : 5000 Ton/Tons / Year

Port : Shanghai

Certification : ISO 9001:2008

Application : Cement mill

Material : Cr-Mo Alloy Steel

Dimensions : As per drawings

Hardness : More than HRC50

Impact Value : More than AK49J

Product Name : Mill Liners

Contact Now

Mill Liners Cr-Mo Alloy Steel Wear Castings Conch Cement Mill

Specification

1.Material:Cr-Mo Alloy Steel

2.Hardness:More Than HRC50

3.Impact Value:More than AK49J

4.Application:Mining Industry

5.MOQ:5tons



Our company is a Chinese specialized manufacturer of alloy steel castings.

We can produce alloy steel castings as per the drawings of customers.

Now we have been the regular suppliers of mill liners for Metso;Connect,Australia;

DuoBaoShan Coal Mill.

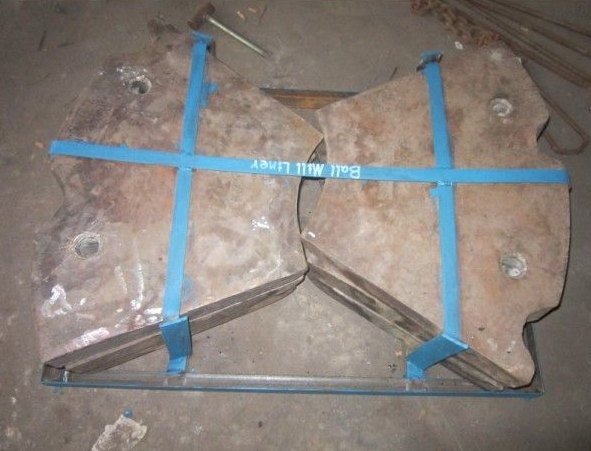

Product Photo

Liner Plates Cr-Mo Alloy Steel Wear Castings Conch Cement Mill Hardness More than HRC50  Liner Plates Cr-Mo Alloy Steel Wear Castings Conch Cement Mill Hardness More than HRC50

Technical Parameters

Item Cr-Mo Alloy Steel Ⅰ Cr-Mo Alloy Steel Ⅱ Cr-Mo Alloy Steel Ⅲ
C 0.3-0.5 0.65-0.90 0.4-0.9
Si 0.15-1.20 ≤0.75 0.7-1.2
Mn 0.4-1.2 0.5-1.2 0.6-1.0
Cr 1.7-2.5 1.5-2.5 4.0-7.0
S ≤0.04 ≤0.06 ≤0.04
P ≤0.04 ≤0.06 ≤0.06
Mo ≤0.5 ≤0.5 ≤0.15
Cu 0.1-0.6 ≤0.25 0.2-0.4
Ni ≤0.5 ≤0.3 0-0.3
Re ≤0.02 ≤0.02 ≤0.02
Equivalent
Specification
DL/T 681-1999
GB/T26651-2011
AS2074L2B Mod DL/T 681-1999
Material Type Martensite Steel Martensite or Pearlitic Cr Mo Steel Martensite Steel
Hardness HRC≥48 HB470&HB321-370 HRC≥50
Impact Value AK≥40J - AK≥10J



Production Facilities

                             1T,1.5T,3T,5T,12T,15T

       Induction Electrical Furnace                          Heat Treatment Electrical Furnace

      Liner Plates Cr-Mo Alloy Steel Wear Castings Conch Cement Mill Hardness More than HRC50         Liner Plates Cr-Mo Alloy Steel Wear Castings Conch Cement Mill Hardness More than HRC50

Inspection Facilities

Spectrometer                                                   Portable Hardness Tester

       Liner Plates Cr-Mo Alloy Steel Wear Castings Conch Cement Mill Hardness More than HRC50         Liner Plates Cr-Mo Alloy Steel Wear Castings Conch Cement Mill Hardness More than HRC50



                                             UT Test                                       Electronic Metallographic Microscope

                 Liner Plates Cr-Mo Alloy Steel Wear Castings Conch Cement Mill Hardness More than HRC50          Liner Plates Cr-Mo Alloy Steel Wear Castings Conch Cement Mill Hardness More than HRC50



Honor

Liner Plates Cr-Mo Alloy Steel Wear Castings Conch Cement Mill Hardness More than HRC50   Liner Plates Cr-Mo Alloy Steel Wear Castings Conch Cement Mill Hardness More than HRC50    Liner Plates Cr-Mo Alloy Steel Wear Castings Conch Cement Mill Hardness More than HRC50



Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

 longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
